前两天同事问了一个 java.net.SocketException: Connection reset 的问题,场景是在一个 Java 应用中使用 httpClient 请求远程一个 RestfulApi 接口,但返回报错 Connection reset。由于没有到现场查看日志,只能通过查看源码和资料进行故障重现,本文记录了问题的分析过程。
[2019-10-24 14:55:34.390][HttpClientUtils.java:797]-doPost 发送 POST 请求出现异常:请求参数:{aaa:bbb,ccc:ddd},url: http://xxx.xxx.com/xxx/xxx , 时间秒:0.019 秒,Connection reset java.net.SocketException: Connection reset
查看 jdk10 源码,发现 Connection reset 信息出现于方法 java.net.SocketInputStream#read(byte[], int, int, int) 。
根据 IBM 开发者社区博客 Understanding some common SocketExceptions in JAVA 描述,在 Java 中出现 Connnection reset 的原因为本地 socket 在接收或发送数据时收到远端系统带 RST 位的数据包。

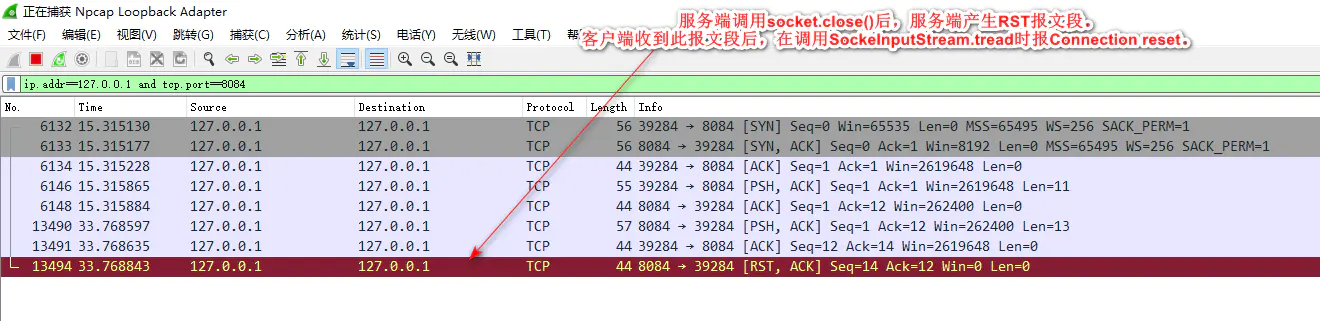

根据《TCP/IP 详解.卷一:协议》,复位报文段(RST)可能在以下三种情况下出现:
根据 RST 报文段出现的三种场景,分三种情况对故障进行重现。
java.net.ConnectException: Connection refused: connect
at java.base/java.net.DualStackPlainSocketImpl.connect0(Native Method) ~[na:na]
at java.base/java.net.DualStackPlainSocketImpl.socketConnect(DualStackPlainSocketImpl.java:79) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:400) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:243) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:225) ~[na:na]
at java.base/java.net.PlainSocketImpl.connect(PlainSocketImpl.java:148) ~[na:na]
at java.base/java.net.Socket.connect(Socket.java:591) ~[na:na]
at java.base/java.net.Socket.connect(Socket.java:540) ~[na:na]
at java.base/sun.net.NetworkClient.doConnect(NetworkClient.java:182) ~[na:na]
at java.base/sun.net.www.http.HttpClient.openServer(HttpClient.java:474) ~[na:na]
at java.base/sun.net.www.http.HttpClient.openServer(HttpClient.java:569) ~[na:na]
at java.base/sun.net.www.http.HttpClient.<init>(HttpClient.java:242) ~[na:na]
at java.base/sun.net.www.http.HttpClient.New(HttpClient.java:341) ~[na:na]
at java.base/sun.net.www.http.HttpClient.New(HttpClient.java:362) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.getNewHttpClient(HttpURLConnection.java:1242) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.plainConnect0(HttpURLConnection.java:1181) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.plainConnect(HttpURLConnection.java:1075) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.connect(HttpURLConnection.java:1009) ~[na:na]
at org.springframework.http.client.SimpleBufferingClientHttpRequest.executeInternal(SimpleBufferingClientHttpRequest.java:76) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.http.client.AbstractBufferingClientHttpRequest.executeInternal(AbstractBufferingClientHttpRequest.java:48) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.http.client.AbstractClientHttpRequest.execute(AbstractClientHttpRequest.java:53) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.doExecute(RestTemplate.java:742) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.execute(RestTemplate.java:677) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.postForObject(RestTemplate.java:421) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at com.weiquding.connection.reset.demo.client.ApplicationCenter.serverHello(ApplicationCenter.java:53) ~[classes/:na]
由上节 wireshark 捕获的数据包可知,客户端与服务端只存在一次有效交互,即客户端发送 SYN 报文段,试图建立连接,但服务端由于没有端口监听,回了 RST 报文段。
由上节报错的堆栈信息可知,客户端建立连接的过程最终会调用到 Native 方程 connect0,以 windows 平台为例,方法为 java.net.DualStackPlainSocketImpl#connect0,对应源码 PlainSocketImpl#connect0 如下:
* Class: java_net_PlainSocketImpl
* Method: connect0
* Signature: (ILjava/net/InetAddress;I)I
JNIEXPORT jint JNICALL Java_java_net_PlainSocketImpl_connect0
(JNIEnv *env, jclass clazz, jint fd, jobject iaObj, jint port) {
SOCKETADDRESS sa;
int rv, sa_len = 0;
jboolean v4MappedAddress = ipv6_available() ? JNI_TRUE : JNI_FALSE;
if (NET_InetAddressToSockaddr(env, iaObj, port, &sa,
&sa_len, v4MappedAddress) != 0) {
return -1;
rv = connect(fd, &sa.sa, sa_len);
if (rv == SOCKET_ERROR) {
int err = WSAGetLastError();
if (err == WSAEWOULDBLOCK) {
return java_net_PlainSocketImpl_WOULDBLOCK;
} else if (err == WSAEADDRNOTAVAIL) {
JNU_ThrowByName(env, JNU_JAVANETPKG "ConnectException",
"connect: Address is invalid on local machine,"
" or port is not valid on remote machine");
} else {
* 当errno为WSAECONNREFUSED时,走此分支,抛出异常:java/net/ConnectException:Connection refused: connect
*{ WSAECONNREFUSED, "ConnectException", "Connection refused" },
NET_ThrowNew(env, err, "connect");
// return value not important.
return rv;
此种情况下,异常在 TCP 建立过程中发生,抛出异常不是 java.net.SocketException:Connection reset。
检测半开连接
准备一个客户端 httpClient 请求示例。同上一情况。
准备一个服务端 RestfulApi 服务接口,并将服务端部署在远程主机上,此情况下先启动应用,等客户端执行 read 或 write 前再强制杀掉服务端应用,另要确保远端防火墙相应的端口 8083 已经打开。
在客户端打开 wireshark 软件,选择对应的数据交换的网络接口(此时选择本地回环网络接口 Loopback,因为因特网半开连接不好模拟),在显示过滤器栏位输入规则"ip.addr == xxx.xxx.xxx.xxx and tcp.port==8083",以便只显示对 socket 上的流量。
客户端 write 时遇到半开连接的情况
首先看 write 时遇到半开连接的情况,在 java.net.SocketOutputStream#socketWrite 方法的 socketWrite0 方法调用处打一个断点。
* Writes to the socket with appropriate locking of the
* FileDescriptor.
* @param b the data to be written
* @param off the start offset in the data
* @param len the number of bytes that are written
* @exception IOException If an I/O error has occurred.
private void socketWrite(byte b[], int off, int len) throws IOException {
if (len <= 0 || off < 0 || len > b.length - off) {
if (len == 0) {
return;
throw new ArrayIndexOutOfBoundsException("len == " + len
+ " off == " + off + " buffer length == " + b.length);
FileDescriptor fd = impl.acquireFD();
try {
// 以下行为断点位置
socketWrite0(fd, b, off, len);
} catch (SocketException se) {
/* 此处会抛出异常:java.net.SocketException: Connection reset by peer: socket write error
* 但由于整个out.flush过程会调用三次,且异常发生后存在半开连接的拆除和重连接。
* 最终的异常信息为:java.net.ConnectException: Connection refused: connect
if (se instanceof sun.net.ConnectionResetException) {
impl.setConnectionResetPending();
se = new SocketException("Connection reset");
if (impl.isClosedOrPending()) {
throw new SocketException("Socket closed");
} else {
// 异常抛出之处
throw se;
} finally {
impl.releaseFD();
启动客户端程序,调用远端服务。产生服务调用的方式为在本地浏览器输入 http://localhost:8082/hello?key=client
当客户端程序运行到 socketWrite0 时,强关服务端程序(idea 中直接关停应用即可),然后再放开断点让客户端程序执行完成。此时客户端应先已经产生异常:java.net.SocketException: Connection reset by peer: socket write error,但不抛出,这部分原因在分析章节指出。

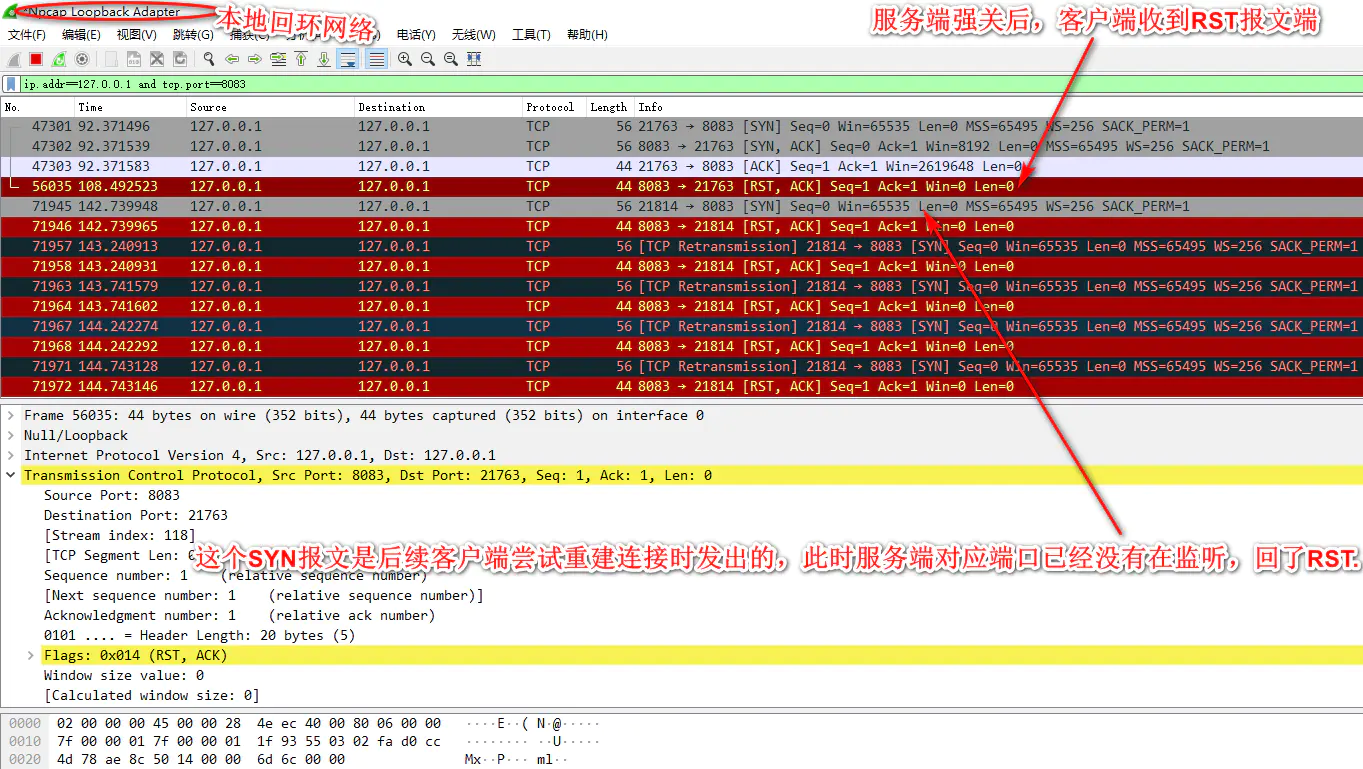

. 在 wireshark 的 Packet List 面板,查看双方交互的数据包。
打开客户端控制台,查看报错的堆栈信息。
java.net.ConnectException: Connection refused: connect
at java.base/java.net.DualStackPlainSocketImpl.connect0(Native Method) ~[na:na]
at java.base/java.net.DualStackPlainSocketImpl.socketConnect(DualStackPlainSocketImpl.java:79) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:400) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:243) ~[na:na]
at java.base/java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:225) ~[na:na]
at java.base/java.net.PlainSocketImpl.connect(PlainSocketImpl.java:148) ~[na:na]
at java.base/java.net.Socket.connect(Socket.java:591) ~[na:na]
at java.base/java.net.Socket.connect(Socket.java:540) ~[na:na]
at java.base/sun.net.NetworkClient.doConnect(NetworkClient.java:182) ~[na:na]
at java.base/sun.net.www.http.HttpClient.openServer(HttpClient.java:474) ~[na:na]
at java.base/sun.net.www.http.HttpClient.openServer(HttpClient.java:569) ~[na:na]
at java.base/sun.net.www.http.HttpClient.<init>(HttpClient.java:242) ~[na:na]
at java.base/sun.net.www.http.HttpClient.New(HttpClient.java:341) ~[na:na]
at java.base/sun.net.www.http.HttpClient.New(HttpClient.java:376) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.setNewClient(HttpURLConnection.java:793) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.setNewClient(HttpURLConnection.java:781) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.writeRequests(HttpURLConnection.java:723) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.getOutputStream0(HttpURLConnection.java:1366) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.getOutputStream(HttpURLConnection.java:1331) ~[na:na]
at org.springframework.http.client.SimpleBufferingClientHttpRequest.executeInternal(SimpleBufferingClientHttpRequest.java:78) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.http.client.AbstractBufferingClientHttpRequest.executeInternal(AbstractBufferingClientHttpRequest.java:48) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.http.client.AbstractClientHttpRequest.execute(AbstractClientHttpRequest.java:53) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.doExecute(RestTemplate.java:742) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.execute(RestTemplate.java:677) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.postForObject(RestTemplate.java:421) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at com.weiquding.connection.reset.demo.client.ApplicationCenter.serverHello(ApplicationCenter.java:53) ~[classes/:na]
客户端 write 时遇到半开连接情况的分析
客户端在 java.net.SocketOutputStream#socketWrite 方法中得到异常信息 java.net.SocketException: Connection reset by peer: socket write error 后,为什么没有抛出?
由于存在整个 PrintStream-->BufferedOutputStream-->SocketOutputStream 包装,out.flush 过程会调用三次 socketWirte,且异常发生后异常信息会捕获,后续进行半开连接的拆除和重连接。见异常捕获 PrintStream.flush()方法及三次 socketWrite 调用及连接重建的的栈信息。
* Flushes the stream. This is done by writing any buffered output bytes to
* the underlying output stream and then flushing that stream.
* @see java.io.OutputStream#flush()
public void flush() {
synchronized (this) {
try {
ensureOpen();
//此处调用BufferedOutputStream.flush();间接调用SocketOutputStream.socketWrite。
out.flush();
catch (IOException x) {
// 异常捕获,设置异常标志。
trouble = true;
第一次调用 socketWrite 方法的栈信息。
socketWrite:111, SocketOutputStream (java.net)
write:155, SocketOutputStream (java.net)
flushBuffer:81, BufferedOutputStream (java.io)
flush:142, BufferedOutputStream (java.io)
flush:417, PrintStream (java.io)
print:301, MessageHeader (sun.net.www)
writeRequests:655, HttpClient (sun.net.www.http)
writeRequests:666, HttpClient (sun.net.www.http)
writeRequests:711, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream0:1366, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream:1331, HttpURLConnection (sun.net.www.protocol.http)
executeInternal:78, SimpleBufferingClientHttpRequest (org.springframework.http.client)
executeInternal:48, AbstractBufferingClientHttpRequest (org.springframework.http.client)
execute:53, AbstractClientHttpRequest (org.springframework.http.client)
doExecute:742, RestTemplate (org.springframework.web.client)
execute:677, RestTemplate (org.springframework.web.client)
postForObject:421, RestTemplate (org.springframework.web.client)
serverHello:53, ApplicationCenter (com.weiquding.connection.reset.demo.client)
HttpClient#writeRequests(sun.net.www.MessageHeader, sun.net.www.http.PosterOutputStream)方法
public void writeRequests(MessageHeader head,
PosterOutputStream pos) throws IOException {
requests = head;
// 第一次调用SocketOutputStream.socketWrite的入口
requests.print(serverOutput);
poster = pos;
if (poster != null)
poster.writeTo(serverOutput);
// PrintStream.flush, 第二次调用SocketOutputStream.socketWrite的入口
serverOutput.flush();
第二调用 SocketOutputStream.socketWrite 的栈信息
socketWrite:111, SocketOutputStream (java.net)
write:155, SocketOutputStream (java.net)
flushBuffer:81, BufferedOutputStream (java.io)
flush:142, BufferedOutputStream (java.io)
flush:417, PrintStream (java.io)
writeRequests:659, HttpClient (sun.net.www.http)
writeRequests:666, HttpClient (sun.net.www.http)
writeRequests:711, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream0:1366, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream:1331, HttpURLConnection (sun.net.www.protocol.http)
executeInternal:78, SimpleBufferingClientHttpRequest (org.springframework.http.client)
executeInternal:48, AbstractBufferingClientHttpRequest (org.springframework.http.client)
execute:53, AbstractClientHttpRequest (org.springframework.http.client)
doExecute:742, RestTemplate (org.springframework.web.client)
execute:677, RestTemplate (org.springframework.web.client)
postForObject:421, RestTemplate (org.springframework.web.client)
serverHello:53, ApplicationCenter (com.weiquding.connection.reset.demo.client)
java.io.PrintStream#checkError 方法
* Flushes the stream and checks its error state. The internal error state
* is set to {@code true} when the underlying output stream throws an
* {@code IOException} other than {@code InterruptedIOException},
* and when the {@code setError} method is invoked. If an operation
* on the underlying output stream throws an
* {@code InterruptedIOException}, then the {@code PrintStream}
* converts the exception back into an interrupt by doing:
* <pre>{@code
* Thread.currentThread().interrupt();
* }</pre>
* or the equivalent.
* @return {@code true} if and only if this stream has encountered an
* {@code IOException} other than
* {@code InterruptedIOException}, or the
* {@code setError} method has been invoked
public boolean checkError() {
if (out != null)
// PrintStream.flush, 第三次调用SocketOutputStream.socketWrite的入口
flush();
if (out instanceof java.io.PrintStream) {
PrintStream ps = (PrintStream) out;
return ps.checkError();
// 返回是否异常,true将进入连接重建逻辑。
return trouble;
第三次调用 SocketOutputStream.socketWrite 的栈信息
socketWrite:111, SocketOutputStream (java.net)
write:155, SocketOutputStream (java.net)
flushBuffer:81, BufferedOutputStream (java.io)
flush:142, BufferedOutputStream (java.io)
flush:417, PrintStream (java.io)
checkError:471, PrintStream (java.io)
writeRequests:712, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream0:1366, HttpURLConnection (sun.net.www.protocol.http)
getOutputStream:1331, HttpURLConnection (sun.net.www.protocol.http)
executeInternal:78, SimpleBufferingClientHttpRequest (org.springframework.http.client)
executeInternal:48, AbstractBufferingClientHttpRequest (org.springframework.http.client)
execute:53, AbstractClientHttpRequest (org.springframework.http.client)
doExecute:742, RestTemplate (org.springframework.web.client)
execute:677, RestTemplate (org.springframework.web.client)
postForObject:421, RestTemplate (org.springframework.web.client)
serverHello:53, ApplicationCenter (com.weiquding.connection.reset.demo.client)
sun.net.www.protocol.http.HttpURLConnection#writeRequests 重建 TCP 链接逻辑分析
/* adds the standard key/val pairs to reqests if necessary & write to
* given PrintStream
private void writeRequests() throws IOException {
* 省略设计http请求首部的逻辑
// 前两次的SocketOutputStream.socketWrite调用入口
http.writeRequests(requests, poster, streaming());
// 第三次SocketOutputStream.socketWrite调用,并检查是否有异常
if (ps.checkError()) {
String proxyHost = http.getProxyHostUsed();
int proxyPort = http.getProxyPortUsed();
// 断开半开连接
disconnectInternal();
if (failedOnce) {
throw new IOException("Error writing to server");
} else { // try once more
failedOnce=true;
if (proxyHost != null) {
setProxiedClient(url, proxyHost, proxyPort);
} else {
// 进行一次连接重建,此时会抛出java.net.ConnectException: Connection refused: connect
setNewClient (url);
ps = (PrintStream) http.getOutputStream();
connected=true;
responses = new MessageHeader();
setRequests=false;
// 递归调用,以便重新进入socketWrite调用
writeRequests();
前三步与 wirte 时一致,不再叙述。对于 read 时遇到半开连接的情况,在 java.net.SocketInputStream#read(byte[], int, int, int)方法的 socketRead 方法调用处打一个断点。
* Reads into a byte array <i>b</i> at offset <i>off</i>,
* <i>length</i> bytes of data.
* @param b the buffer into which the data is read
* @param off the start offset of the data
* @param length the maximum number of bytes read
* @return the actual number of bytes read, -1 is
* returned when the end of the stream is reached.
* @exception IOException If an I/O error has occurred.
public int read(byte b[], int off, int length) throws IOException {
return read(b, off, length, impl.getTimeout());
int read(byte b[], int off, int length, int timeout) throws IOException {
int n;
// EOF already encountered
if (eof) {
return -1;
// connection reset
if (impl.isConnectionReset()) {
throw new SocketException("Connection reset");
// bounds check
if (length <= 0 || off < 0 || length > b.length - off) {
if (length == 0) {
return 0;
throw new ArrayIndexOutOfBoundsException("length == " + length
+ " off == " + off + " buffer length == " + b.length);
boolean gotReset = false;
// acquire file descriptor and do the read
FileDescriptor fd = impl.acquireFD();
try {
// 以下行为打断点处,此方法将调用Native方法socketRead0
n = socketRead(fd, b, off, length, timeout);
if (n > 0) {
return n;
} catch (ConnectionResetException rstExc) {
// 捕获sun.net.ConnectionResetException连接重置异常,改为设置标志以便再次尝试读取缓存区数据
gotReset = true;
} finally {
impl.releaseFD();
* We receive a "connection reset" but there may be bytes still
* buffered on the socket
* 再次尝试读取缓存区数据
if (gotReset) {
impl.setConnectionResetPending();
impl.acquireFD();
try {
n = socketRead(fd, b, off, length, timeout);
if (n > 0) {
return n;
} catch (ConnectionResetException rstExc) {
} finally {
impl.releaseFD();
* If we get here we are at EOF, the socket has been closed,
* or the connection has been reset.
if (impl.isClosedOrPending()) {
throw new SocketException("Socket closed");
if (impl.isConnectionResetPending()) {
impl.setConnectionReset();
if (impl.isConnectionReset()) {
// 如果两次都因为连接重置没有读取成功,转换异常,抛出java.net.SocketException: Connection reset异常。
throw new SocketException("Connection reset");
eof = true;
return -1;
当客户端程序运行到 socketRead 时,强关服务端程序(idea 中直接关停应用即可),然后再放开断点让客户端程序执行完成。此时客户端产出异常:sun.net.ConnectionResetException。
在 wireshark 的 Packet List 面板,查看双方交互的数据包。
打开客户端控制台,查看报错的堆栈信息。
java.net.SocketException: Connection reset
at java.base/java.net.SocketInputStream.read(SocketInputStream.java:210) ~[na:na]
at java.base/java.net.SocketInputStream.read(SocketInputStream.java:141) ~[na:na]
at java.base/java.io.BufferedInputStream.fill(BufferedInputStream.java:252) ~[na:na]
at java.base/java.io.BufferedInputStream.read1(BufferedInputStream.java:292) ~[na:na]
at java.base/java.io.BufferedInputStream.read(BufferedInputStream.java:351) ~[na:na]
at java.base/sun.net.www.http.HttpClient.parseHTTPHeader(HttpClient.java:746) ~[na:na]
at java.base/sun.net.www.http.HttpClient.parseHTTP(HttpClient.java:689) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.getInputStream0(HttpURLConnection.java:1604) ~[na:na]
at java.base/sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1509) ~[na:na]
at java.base/java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:527) ~[na:na]
at org.springframework.http.client.SimpleClientHttpResponse.getRawStatusCode(SimpleClientHttpResponse.java:55) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.DefaultResponseErrorHandler.hasError(DefaultResponseErrorHandler.java:55) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.handleResponse(RestTemplate.java:773) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.doExecute(RestTemplate.java:743) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.execute(RestTemplate.java:677) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at org.springframework.web.client.RestTemplate.postForObject(RestTemplate.java:421) ~[spring-web-5.2.0.RELEASE.jar:5.2.0.RELEASE]
at com.weiquding.connection.reset.demo.client.ApplicationCenter.serverHello(ApplicationCenter.java:53) ~[classes/:na]
客户端 read 时遇到半开连接情况的分析
read 产生 Connection reset 需要在第一次进行 socketRead 时服务端已经回了 RST 报文段。
从 SocketInputStream.read 方法的源码中,可以在异常发生后还会尝试进行一次重试,考虑了容错性。
异常终止一个连接
由于没有找到 tomcat 直接没有设置 Socket 参数 SO_LINGER 的地方,写一对 Socket 客户端和服务端来模拟此情形。
写一个 Socket 客户端。示例代码见参考资料的 connetion-reset-demo。
@RequestMapping(path = "/socket", produces = MediaType.APPLICATION_JSON_VALUE)
public String connectSocket(@RequestParam("key")String key) {
Socket socket = null;
InputStream inputStream = null;
OutputStream outputStream = null;
try {
socket = new Socket();
socket.connect(new InetSocketAddress("127.0.0.1", 8084));
outputStream = socket.getOutputStream();
outputStream.write(key.getBytes(StandardCharsets.UTF_8));
inputStream = socket.getInputStream();
byte[] rcvBytes = new byte[1024];
inputStream.read(rcvBytes);
return new String(rcvBytes, StandardCharsets.UTF_8);
}catch (IOException e){
LOGGER.error("socket通信异常", e);
}finally {
if(outputStream != null){
try {
outputStream.close();
}catch (IOException e){
LOGGER.error("关闭outputStream异常", e);
if(inputStream != null){
try {
inputStream.close();
}catch (IOException e){
LOGGER.error("关闭inputStream异常", e);
if(socket != null){
try {
socket.close();
} catch (IOException e) {
LOGGER.error("关闭socket异常", e);
return "";
写一个 ServerSocket 服务端,设置 SO_LINGER 参数
public class EchoServer {
private static final Logger LOGGER = LoggerFactory.getLogger(EchoServer.class);
public static void main(String[] args) {
try(ServerSocket serverSocket = new ServerSocket(8084)) {
while(true){
Socket accept = serverSocket.accept();
new Thread(new ThreadHandler(accept)).start();
} catch (IOException e) {
LOGGER.error("serverSocket异常", e);
static class ThreadHandler implements Runnable{
private Socket socket;
public ThreadHandler(Socket socket){
this.socket = socket;
@Override
public void run() {
InputStream inputStream = null;
OutputStream outputStream = null;
try {
// 设置SO_LINGER
socket.setSoLinger(true, 0);
inputStream = socket.getInputStream();
byte[] rcvBytes = new byte[1024];
inputStream.read(rcvBytes);
LOGGER.info("receive data:[{}]", new String(rcvBytes, StandardCharsets.UTF_8));
outputStream = socket.getOutputStream();
outputStream.write("server socket".getBytes(StandardCharsets.UTF_8));
socket.close();
} catch (IOException e) {
LOGGER.error("处理socket异常", e);
}finally {
if(inputStream != null){
try {
inputStream.close();
}catch (IOException e){
LOGGER.error("关闭inputStream异常", e);
if(outputStream != null){
try {
outputStream.close();
}catch (IOException e){
LOGGER.error("关闭outputStream异常", e);
try {
socket.close();
} catch (IOException e) {
LOGGER.error("关闭socket异常", e);
启动服务端进行监听
在客户端打开 wireshark 软件,选择对应的数据交换的网络接口(此时选择本地回环网络接口 Loopback,因为因特网半开连接不好模拟),在显示过滤器栏位输入规则"ip.addr == xxx.xxx.xxx.xxx and tcp.port==8084",以便只显示对应 socket 上的流量。
启动客户端,通过调用 http://localhost:8082/socket?key=client,产生服务端 socket 通信。
在 wireshark 的 Packet List 面板,查看双方交互的数据包。
打开客户端控制台,查看报错的堆栈信息。
java.net.SocketException: Connection reset
at java.base/java.net.SocketInputStream.read(SocketInputStream.java:210) ~[na:na]
at java.base/java.net.SocketInputStream.read(SocketInputStream.java:141) ~[na:na]
at java.base/java.net.SocketInputStream.read(SocketInputStream.java:127) ~[na:na]
at com.weiquding.connection.reset.demo.client.ApplicationCenter.connectSocket(ApplicationCenter.java:82) ~[classes/:na]
服务端设置了 SO_LINGER,关闭链接不会发 FIN 报文段,而是发 RST 报文段。
客户端收到此 RST 报文段,再进行 SocketInputStream.read,将抛出 java.net.SocketException: Connection reset。
解决故障的方案
对于“到不存在的端口的连接请求”的情况。
如果是程序端口错误,无法解决。
其它情况可以在设置服务端多实例,客户端使用降级重试策略,提高可用性。
对于“检测半开连接”的情况。
可以使用 Http 短连接,减少长连接使用过程服务端发生异常导致半开连接的机会,但这会降低性能。
客户端提供 Http 连接池,单个连接使用长连接并配置较短的超时时间,对连接复用,能减少连接创建的消耗;同时连接池提供连接有效性的检测,有无效连接进行拆除。
如果服务端只有单一实例,其反复出现应用崩溃等引起半开连接,则要检测应用程序是否有问题。另外要考虑服务端多实例部署,并在客户端准备降级策略。
对于“异常终止一个连接”的情况。
服务端不要设置 Socket 参数 SO_LINGER,执行正常的连接终止流程。同时连接的终止应当考虑由客户端发起。
Setting the SO_LINGER Option
TCP option SO_LINGER (zero) - when it's required
What's causing my java.net.SocketException: Connection reset?
java.net.SocketException: Connection reset
Understanding some common SocketExceptions in JAVA
Tomcat 配置 api
TCP/IP 详解.卷一 P187 异常中止一个连接
HTTP 权威指南 P100 Keep-Alive 和哑代理
计算机网络(自顶向下方法)P170 TCP 连接管理
Wireshark 数据包分析实战 P117 TCP 重置
TIME_WAIT and its design implications for protocols and scalable client server systems
connection-reset-demo 示例程序地址
Detection of Half-Open (Dropped) Connections
Java 是一种可以撰写跨平台应用软件的面向对象的程序设计语言,是由 Sun Microsystems 公司于 1995 年 5 月推出的。Java 技术具有卓越的通用性、高效性、平台移植性和安全性。
